NO MORE HOMELESS

expandable container house, folding house foldable container foldable homes, folding container house

RAPID DEPOLYABLE PREFAB Expandable Container Houses

emergency affordable housing soldtion

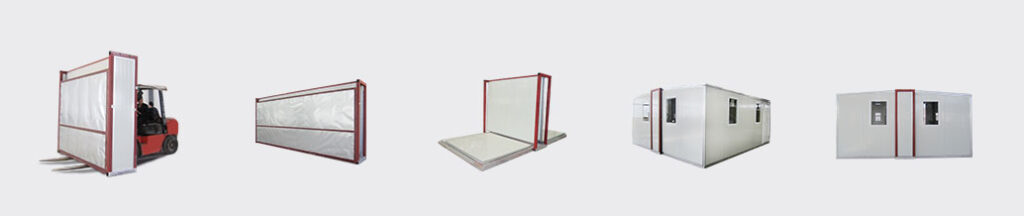

FOLDS-OUT SYSTEM

Low cost, sustainable, rapidly deployable, long term and dignified house which is shipped in package unfolded and assembled by the end users. The basic building components are galvanised tube steel for the base, structural insulated metal panel for walls, floor and roof and can be customised with conventional interior and exterior finishes.

IDEAL FOR THE FAMILY LIVING,RESELLER,BUILDER. USES INCLUDE:

  • Affordable housing

  • Emergency housing

  • Low-income housing

  • Transitional housing

  • Shelter

  • Temporary housing

  • Public housing

  • Subsidized housing

  • Emergency shelter

  • Social housing

  • Homeless shelter

  • Transitional shelter

  • Crisis accommodation

  • Affordable rentals

  • Assisted housing

  • Emergency low income house

  • refuge housing

  • Simple office

  • Bunkhouse

  • Workshop

  • Mobile accommodation centre

expandable container house folding house foldable container foldable homes folding container house

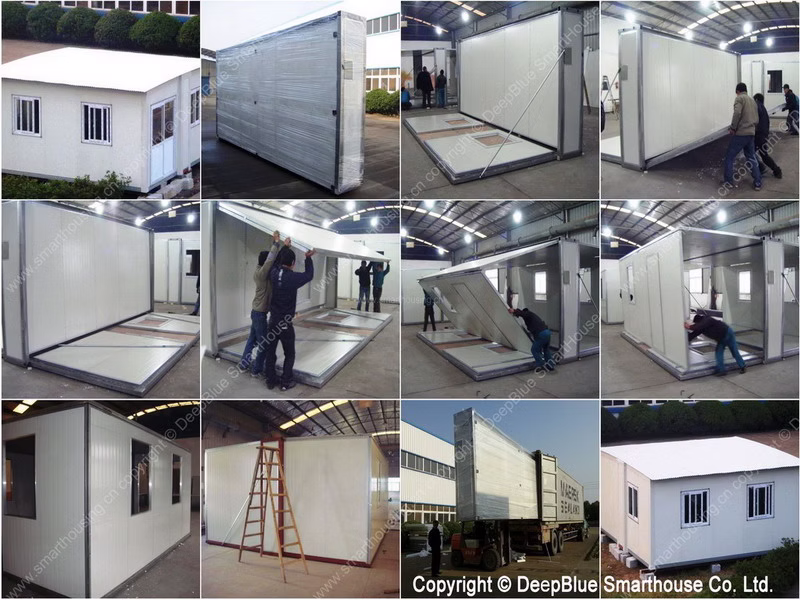

FOLDS OUT WITHIN 10MINUTES

FOLDS OUT WITHIN 10MINUTES

expandable container house folding house foldable container foldable homes folding container house

DIMENSION AND WEIGHT

  • External Dimension (L*W*H): 5800*5180*2620(2510)

  • Internal Dimension(L*W*H):  5500*5080*2475(2400)

  • Weight: about 2000kg per unit


 ROOF

  • Roofing is made of 0.35mm color steel sheet

  • Roofing panel:  50mm EPS sandwich panel as roofing and ceiling panel.

expandable container house folding house foldable container foldable homes folding container house

WALL

  • Wall panels are made of 50mm with 10kg per CBM density EPS foam sandwich panel.

  • The thickness of steel for panel is 0.35mm outside and 0.35mm for inside.

expandable container house folding house foldable container foldable homes folding container house

MAIN FRAME

Material:  Main frames are made from galvanized steel and RHS.  All the frames are well welded in the factory.

Surface working: All frames are painted and treated with Anti-rust paint


DOORS

  • External door: steel, single fold, filled door with opening dimensions of 850X2000mm, furnished with a cylinder lock with 3 keys.

  • Doorframe is made of galvanized steel, with overall dimensions of 900X2025mm, 50mm thick, made of painted sheet metal as the framework


WINDOWS

Windows are made of: Alum. white color, with dimensions 900X1100mm, single glass in a thickness of 4mm, sliding style.

expandable container house folding house foldable container foldable homes folding container house

We're a leading company in the field of prefab house for over ten years, we now have mature technology to meet customers requirements.

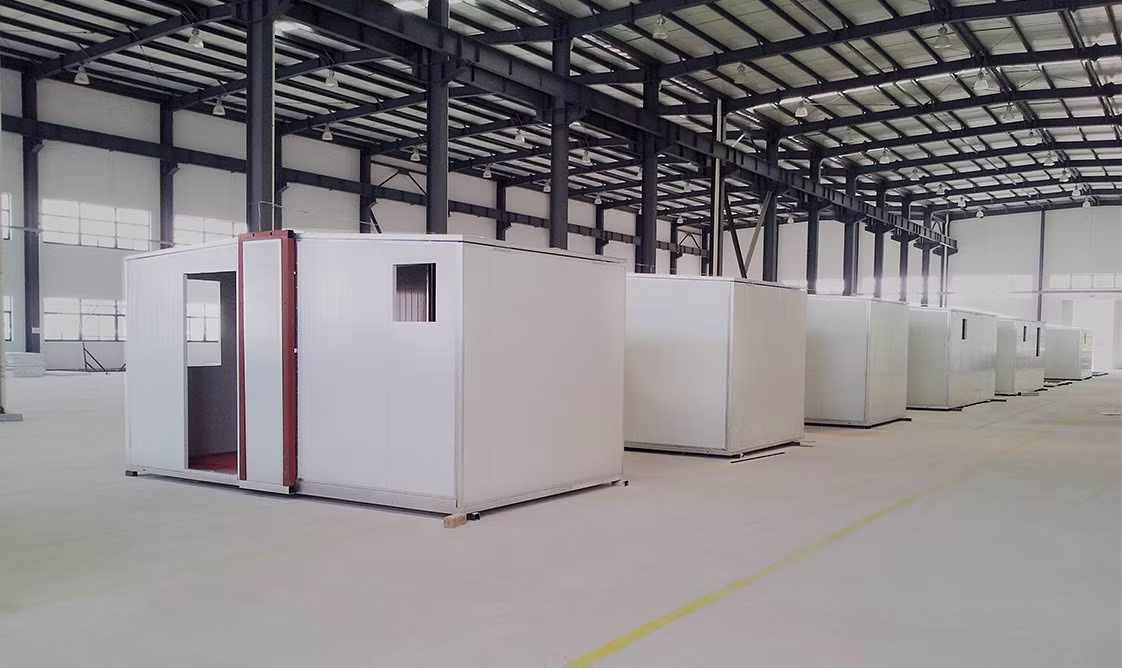

Workshop

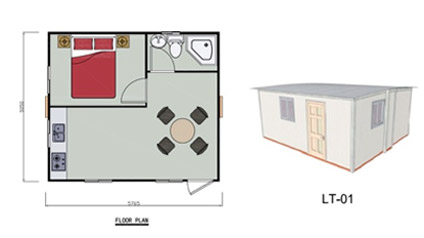

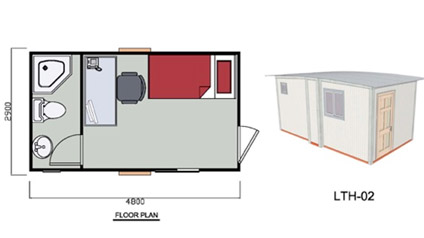

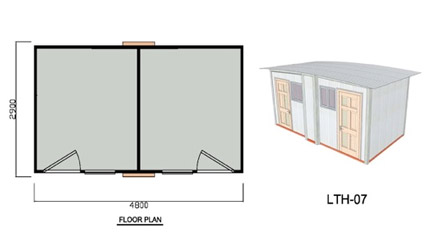

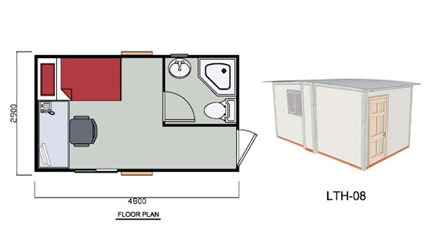

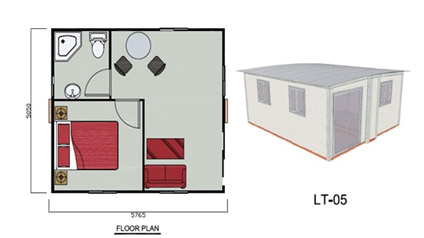

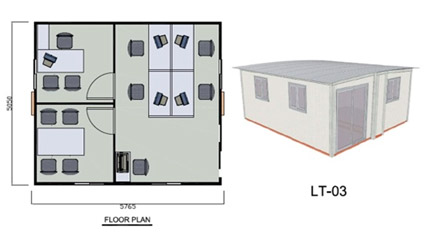

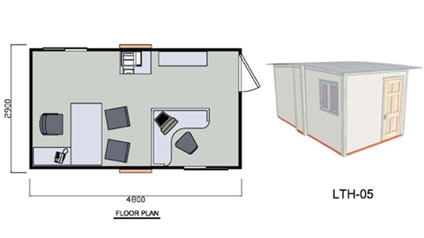

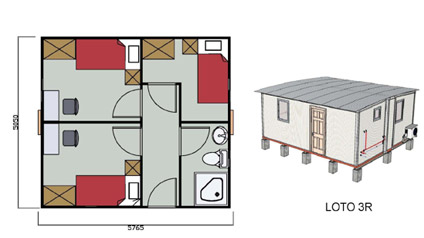

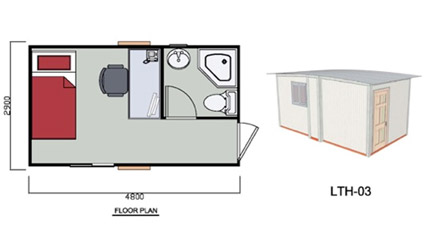

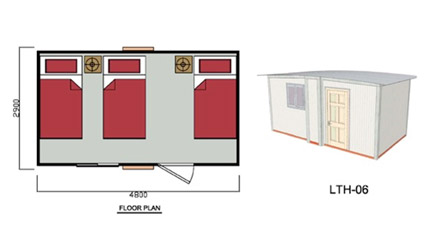

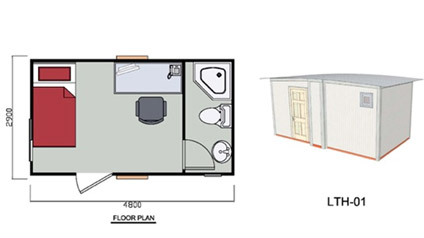

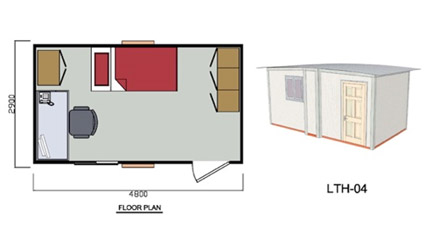

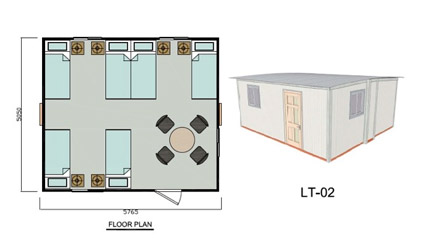

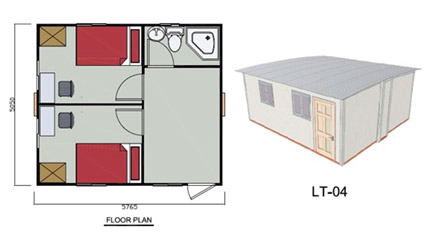

For more details and floorplans

expandable container house folding house foldable container foldable homes folding container house

WHAT WE DO

01

SHELTER

02

CAMP

03

HOSPITAL

04

OFFICE
